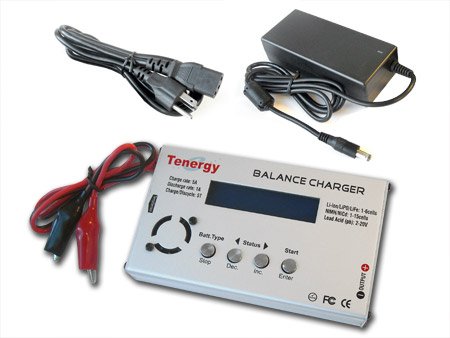

Tenergy TB6 NiMH/NiCD/Li-PO/Li-Fe/SLA Balancing Charger with Switch Power Supply

  • The Best ALL-IN-One Universal Charger in the Market
  • Handle NiMH, NICD, Li-Po,Li-ion, Li-Fe, SLA Batteries
  • Build-in Balance. Temperature Sensor. USB Port to Monitor and acquire Data From Your Computer
  • 11-18V DC Power Supported. For outdoor usage, hookup Automobile Power directly; For indoor usage, use a 110V AC/12V DC Power Supply
  • Dimension: 160×120x40 mm

$71.99



Product Description
Specification
Operating voltage
DC 11~18 volts
AC 100~240V, 50/60Hz
Charge/discharge power
max. 50/5 Watts
NiCd/MH 1~15 cells
LiIo/LiPo/LiFe 1~6 series
Pb
2~20V
Charge current: 0.1 to 5.0A
Discharg current: 0.1 to 1.0A
No. of cycle: 1 to 5 times
Battery data memory: up to 5 data
Weight: 1000g

User’s setting-up parameters
battery voltage type
LiIo:3.6V, LiPo:3.7V, LiFe:3.3V
NiCd Delta-peak voltage sensitivity
1 to 20mV
NiMH Delta-peak voltage sensitivity
1 to 20mV
Battery temperature cut-off
20 to 80C or OFF
Waiting time between charge/discharge
1 to 60 min.
Integral timer limit for safety
10 to 720 min.or OFF
Maximum charging capacity limit for safety
10 to 9990mAh or OFF
Key beep and buzzer sound
ON/OFF
Input DC power low alert
10 to 11V

110-240V AC to 12V DC 5A Switch Power Supply

* Constant Current Switch Power Supply
* Input: 100-240V AC, 50/60Hz 2A
* Output: 12V, 5A
* Perfect for Micro-control LCD Li-Po Balance Charger
