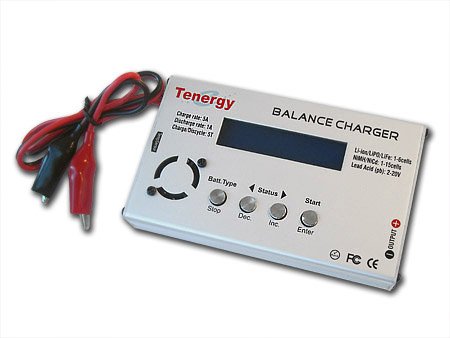

Tenergy TB6 Balancing Charger for NiMH/NiCD/Li-PO/Li-Fe/SLA battery packs

Product Description
The Best ALL-IN-One Universal Charger in the Market

The working electric current is less than 5A when it is charged in full load. The current of the fuse is 10A which could prevent short circuit.

Specification

Operating voltage

DC 11~18 volts
AC 100~240V, 50/60Hz

Charge/discharge power

max. 50/5 Watts

NiCd/MH

1~15 cells

LiIo/LiPo/LiFe

1~6 series

Pb

2~20V

Charge current

0.1 to 5.0A

Discharg current

0.1 to 1.0A

No. of cycle

1 to 5 times

Battery data memory

up to 5 data

Weight

1000g

Dimension

160×120x40 mm

User’s setting-up parameters

Battery voltage type

LiIo:3.6V, LiPo:3.7V, LiFe:3.3V

NiCd Delta-peak voltage sensitivity

1 to 20mV

NiMH Delta-peak voltage sensitivity

1 to 20mV

Battery temperature cut-off

20 to 80C or OFF

Waiting time between charge/discharge

1 to 60 min.

Integral timer limit for safety

10 to 720 min.or OFF

Maximum charging capacity limit for safety

10 to 9990mAh or OFF

Key beep and buzzer sound

ON/OFF

Input DC power low alert

10 to 11V

Warning

o Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mishandled.
o Protective Circuit Board is required when making packs
o Make sure user has enough knowledge on Li-Ion rechargeable batteries in charging, discharging and assembly before use.
o Put the batteries in fire-proof container in charging
o Never leave batteries unattended when charging
o Do not put batteries on wood surface or carpet when charging
o We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries in charging
o We are not responsible for damage caused by other Li-ion batteries not supplied from us
o Do not make any changes to the charger, charger accessories or connectors, as this might cause electrical shortage, fire or over-heating during charging. We are not liable for the product is any changes are made to the charged accessories or connectors.
